Analytics

In-situ sampling of the gas-phase in a single channel of a monolithic honeycomb catalyst (tubular flow reactor capillary setup ) or above a catalytic plate (stagnation flow reactor) via a capillary technique for detection of spatially-resolved concentration profiles. Analysis of gas samples by FTIR, EI-MS and IMR-MS. In the channel of the catalytic monolith, also detection of temperature profiles possible. Measurement of gas-phase as well as surface temperature by thermocouple and optical fiber connected to a pyrometer, respectively.

Ref.:
D. Livio, C. Diehm, A. Donazzi, A. Beretta, and O. Deutschmann. Appl. Catal. A: Gen. 467 (2013) 530.
https://doi.org/10.1016/j.apcata.2013.07.054
C. Karakaya, R. Otterstätter, L. Maier, O. Deutschmann. Appl. Catal. A: Gen. 470 (2014) 31.
https://doi.org/10.1016/j.apcata.2013.10.030

BET Analysis

Gas adsorption is an important method for characterization of powder and porous materials. Our samples will be analysed on the BET surface analyser Belsorp-Mini. Nitrogen gas is applied to this technique.

Measurements are carried out automatically after sample cells are set and the measurement data are analyzed with a dedicated software. Original dead volume measurements make it possible not to control refrigerant liquid level (LN2). Up to 3 samples can be measured independently and simultaneously. An adsorption isotherm can be obtained with nitrogen (N₂), argon (Ar) and various other adsorptive gases.

Ref.:
BEL JAPAN INC

SEM Hitachi S570/EDX

A scanning electron microscope (SEM) produces images of a sample by scanning it with a focused beam of electrons and gives information about the sample's surface topography. It can be achieved a magnification from 50 to 100 000. The resolution of SEM is about 1nm to 20 nm.

Additional analysis with EDX (energy dispersive x-ray) is possible.

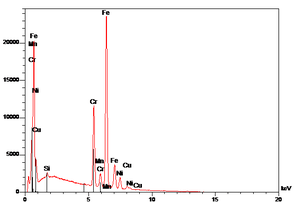

Interaction of the electron beam with the specimen atoms results in emission of x-rays, which are detected and analyzed by X-Ray Spectroscope. This allows producing qualitative analyses of different regions of the sample.

AAS Analysis

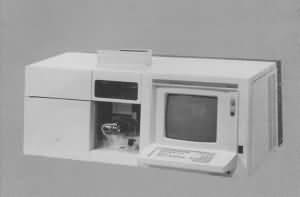

Atomic Absorption Spectroscopy is a technique for determining the concentration of a particular metal element within a sample. The samples are analysed by the flame AAS Hitachi Z-6100.

By utilising two optical pathways (sample / reference), the AAS guarantees a good baseline stability.
Depending on the sample composition, the absorption of element specific light emitted by a hollow-cathode lamp (e.g. Pt, Pd, Al, Si, Mn, Fe) can be measured and correlated to a calibration curve.
The sample solution can be burned with an O2 / acetylene flame or if needed with a N2O / acetylene flame for higher temperatures (Si, Al).

Ref.:
Hitachi

PLIF (planar laser induced fluorescence) inside an optically accessible flow reactor

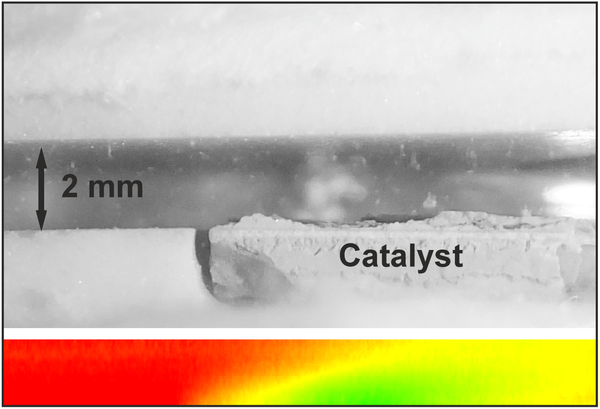

In-situ spectroscopic method for 2d spatially resolved detection of excited species. Axial and radial concentration profiles of the excited species can be visualized simultaneously by PLIF above different catalytic surfaces from inside the reactor. After consideration of collisional quenching effects inside the probe volume absolute concentrations can be obtained. PLIF is a non-invasive method and possesses a high spatial and temporal resolution.

Ref:
A. Zellner, R. Suntz and O. Deutschmann. Chem. Ing. Tech. 86 (2014) 538–543.
https://doi.org/10.1002/cite.201300140
